Virtualized geometry for Unity

NanoGeo

NanoGeo is a virtualized geometry system for Unity. It lets you build scenes with billions of triangles, up to nearly 10 billion in our latest test, using extremely detailed meshes. No LODs to make by hand.

How it works

Split into clusters

NanoGeo splits every mesh into small clusters of up to 128 triangles and builds many levels of detail ahead of time, in the Editor. You add the NanoGeo Mesh component and nothing else.

Only what you can see

While the game runs, the GPU picks only the detail you can actually see on screen, skips what is hidden or off screen, and draws the rest.

Cost follows the screen

The cost depends on screen size, not on how many triangles are in the scene. In our benchmark NanoGeo drew only about 92 thousand triangles per frame out of about 500 million.

How fast is it?

We built a test scene with 381 rocks of 1.3 million triangles each, about 499 million in total, and measured it on an RTX 5070 at 1080p with shadows on.

500

FPS

NanoGeo

Each frame takes the GPU 1.73 ms

270

FPS

GPU Resident Drawer with LOD Groups

Each frame takes the GPU 3.72 ms

6

FPS

Regular MeshRenderers

Each frame takes the GPU 161.5 ms

Out of about 500 million triangles, NanoGeo only had to draw around 92,000 per frame.

Nearly 10 billion triangles

70FPS

A scene with nearly 10 billion triangles runs steadily at about 70 FPS at 2K with NanoGeo.

Unity’s default system can’t even load a scene like this, let alone run it.

When to use it

From millions up to billions of triangles: scanned or sculpted models and large detailed environments. The more geometry you have, the bigger the gain.

  • Open worlds and large environments with lots of detailed props
  • Photogrammetry and 3D scans used straight from the scan
  • High poly sculpts from ZBrush or Blender, with no retopology or LODs
  • Architecture, interior and product visualization
  • Real time cinematics and trailers
  • Big asset packs: add NanoGeo to hundreds of prefabs in one click

Not a good fit for light scenes

fixed GPU time per frame
0.3 ms
extra video memory
0.5 GB
FPS in a light scene
300 → 275

These costs are fixed, even when there is little to draw. At 60 FPS the difference is less than 1 FPS.

If your scene already runs well with normal models and LODs, you may not need NanoGeo. Use Tools > NanoGeo > Disable NanoGeo to compare in your own scene.

What you get

One component
Your MeshRenderer and materials stay as they are.
HDRP and URP
Lighting, shadows, decals, SSAO, light probes, TAA and post processing look the same as before.
Materials
HDRP Lit, URP Lit and HDRP Shader Graph, including alpha clipping (leaves, fences) and double sided materials.
Objects
LOD Groups, mirrored objects and moving objects.
Occlusion culling
Done on the GPU, so objects hidden behind others are skipped automatically.
Streaming
For very large worlds, set a streaming budget. Only the simple levels always stay in video memory, and finer detail is loaded when the camera comes close.
NanoGeo Mesh Prefab
Sets up whole prefabs or folders of prefabs, with warnings and one click fixes.
Diagnostics
Visualization modes, statistics and GPU timings show what NanoGeo is doing.
In the package
Demo scenes for HDRP and URP and a full user guide as a PDF.

Requirements and limits

Unity
Unity 6000.0.84f1 or newer, which is every Unity 6 version.
Render pipeline
HDRP 17 or URP 17. The Built-in Render Pipeline is not supported.
Baking
Windows Editor, 64 bit. Games built for other platforms can use data baked on Windows.
Graphics API
Direct3D 12 or Vulkan for everything. Direct3D 11 and Metal work without the software rasterizer, a speed up for very small triangles.
Not supported
These objects keep their normal MeshRenderer: skinned meshes and blend shapes, transparent materials, terrain, tessellation, URP Shader Graphs, hand written shaders, and objects with baked lightmaps (use light probes instead).

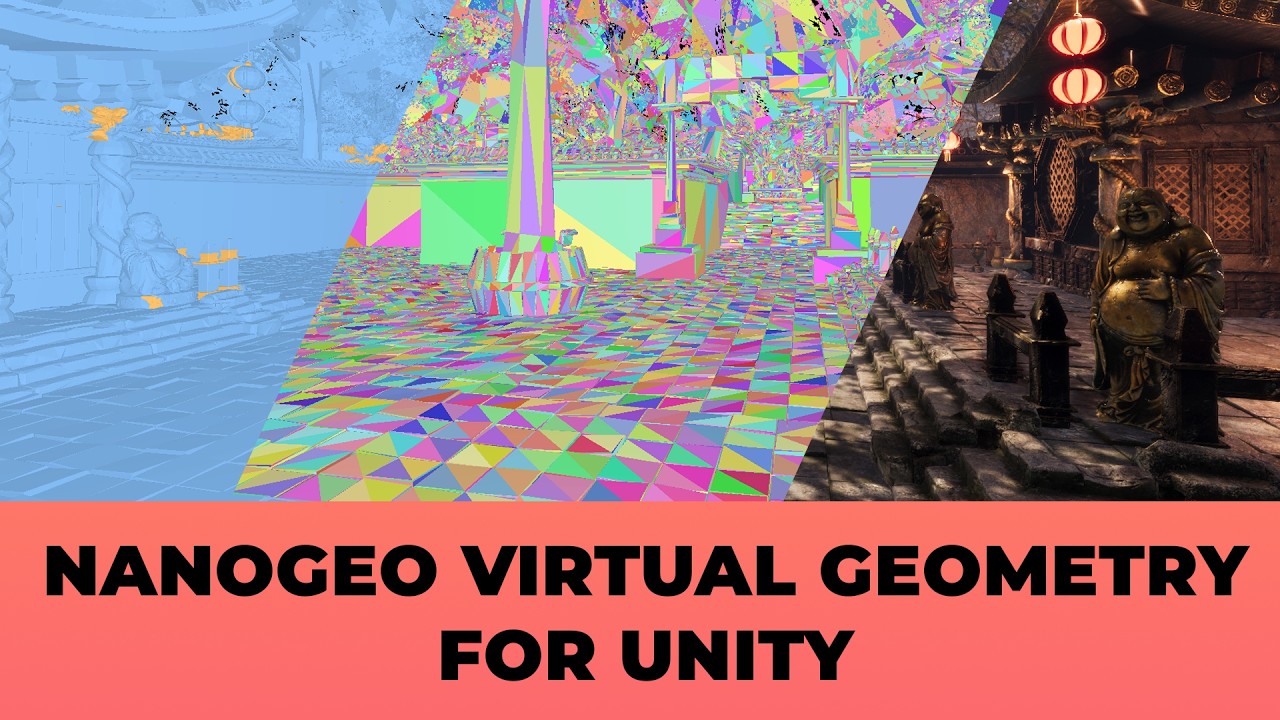

Asian Dynasty Environment by Befour Studios, used here to show NanoGeo in a real scene. The environment is not included with NanoGeo.

meshoptimizer by Arseny Kapoulkine, MIT license. It runs in the Editor only and is not included in builds.
